Henan Lovo Industry Co., Ltd. company profile
Products
Home > Products > Soap Packing Machine > Toilet Soap Hotel Soap Plastic Packing Machine Automatic Soap Flow Packing Machine
Product Details
Highlight:

330mm toilet soap wrapping machine

,

Automatic toilet soap wrapping machine

,

150mm soap cartoning machine

Warranty::
2 Years
Packaging Material:
Plastic
Packaging Type:
Bags, Film, Pouch, Case
Function:
Wrapping, Sealing, Counting
Core Components:
PLC, MOTOR, Engine
Automatic Grade:
Automatic
Bag Size:
150-330mm
Warranty::
2 Years
Packaging Material:
Plastic
Packaging Type:
Bags, Film, Pouch, Case
Function:
Wrapping, Sealing, Counting
Core Components:
PLC, MOTOR, Engine
Automatic Grade:
Automatic
Bag Size:
150-330mm
Product Description

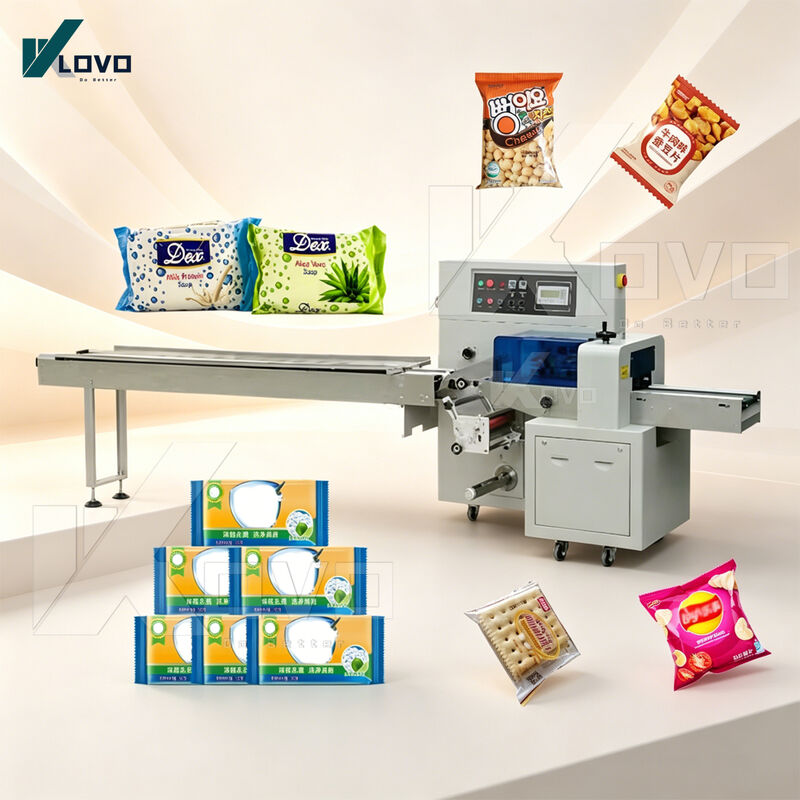

Hot Sales Automatic Soap Flow Packing Machine Toliet Soap Hotel Soap Plastic Packing Machine

Product description

Application
Suitable for packaging of various regular objects such as biscuits, cakes,egg yolk pies, chocolate, bread, instant noodles, moon cakes, fruit, vegetable, daily necessities, industrial parts, cartons or trays.


Main Advantage

1).Adopt the famous brand PLC intelligent controller and inverter, machine quality is more trustworthy.
2).7 inch famous brand touch screen, the system is more intelligent and easy to operate.
3).Independent temperature control system, the temperature error is within ± 1°C
4).Photocell sensor, automatically compensate the length deviation of the film.
5).The interface of the system is simple and easy to understand, and the parameter setting is easy and simple.
6).Self diagnosis fault, safe operation, protect equipment.
7).Flexible operation, high applicability, can be packed with a variety of materials, machine for multi-purpose.
8).Automatically complete feeding, bag making, sealing and date printing function to realize industrialized rapid packaging.
9).lt has high compatibility and can be matched with diversified equipment to meet diversified production requirements, such as punching, bagging, exhaust, aeration,OR code printing, etc. 10).The software operating system is stable. It also can customize the display of personalized logo on the touch screen.
Advantages
1. Three servo controls, the bag length can be set and cut without any need to adjust the idling, and it can be completed in one step, saving time and film. 2. Human-machine interface, convenient and quick parameter setting. 3. Fault self-diagnosis function, fault display is clear at a glance. 4. High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate. 5. Independent PID control of temperature, better suitable for various packaging materials. 6. Positioning stop function, no knife sticking, no waste of film. 7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient. 8. All controls are realized by software, which facilitates function adjustment and technology upgrade and never lags behind.



Product PARAMETERS



Model
ZP-350
Packaging speed(bag/minute)
40-240bag/min
Bag width
50-160mm
Bag length
Any long size controlled by senor
Film width(mm)
<340mm
Total power
220V,50/60HZ,2.8KW
Overall size(mm)
(L)3527*(W)765*(H)1375mm
Weight
420kg
Package
4.0CBM,2CASES
Overall size (mm)
OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL etc.

Optional Devices
1. Date coder / Printer
2. Discharge brush
3. Sponge air-exhaust device

Machine Details
Toilet Soap Hotel Soap Plastic Packing Machine Automatic Soap Flow Packing Machine 0
Toilet Soap Hotel Soap Plastic Packing Machine Automatic Soap Flow Packing Machine 1
Toilet Soap Hotel Soap Plastic Packing Machine Automatic Soap Flow Packing Machine 2
FAQ:

1. What is a flow packing machine for soap?

A flow packing machine (also called flow wrap machine) automatically wraps soap bars in plastic film, seals the edges, and cuts individual packs. It creates a pillow-shaped package that is fully sealed and ready for sale.



2. What is the packing speed of this machine?

The packing speed is adjustable, typically 30–100 packs per minute depending on soap bar size and film type. The "hot sales" model is known for reliable high-speed performance.



3. What types of soap can this machine pack?

This machine packs toilet soap, hotel soap, laundry soap, and bath soap bars. It handles various sizes from small hotel guest soaps (20g) to larger toilet soaps (150g+).



4. Is the machine easy to adjust for different soap sizes?

Yes, bag size adjustment takes 5–10 minutes. Adjust the forming tube, sealing jaws, and film roll via the control panel. No special tools are required.



5. Why is this model "hot sales"?

This model is a best-seller because of its: (1) reliable high-speed performance, (2) easy operation, (3) competitive factory price, and (4) low maintenance requirements. Thousands of units have been sold worldwide.
