Home > Products > Fully Automatic Soap Making Machine > CE Industrial Stainless Steel Soap Noodles Mixing Machine Sigma Double Z Arm Mixer
Product Details
Highlight:

Stainless Steel Soap Noodles Mixer

,

Sigma Double Z Arm Mixer

,

Industrial Soap Making Machine

Capacity:
100 Kg Per Batch
Raw Material:
Soap Noddle
Frame Material:
'U' Carbon Steel
Type:
Batch Mixer
Function:
Breaking And Mixing
Capacity:
100 Kg Per Batch
Raw Material:
Soap Noddle
Frame Material:
'U' Carbon Steel
Type:
Batch Mixer
Function:
Breaking And Mixing
Product Description

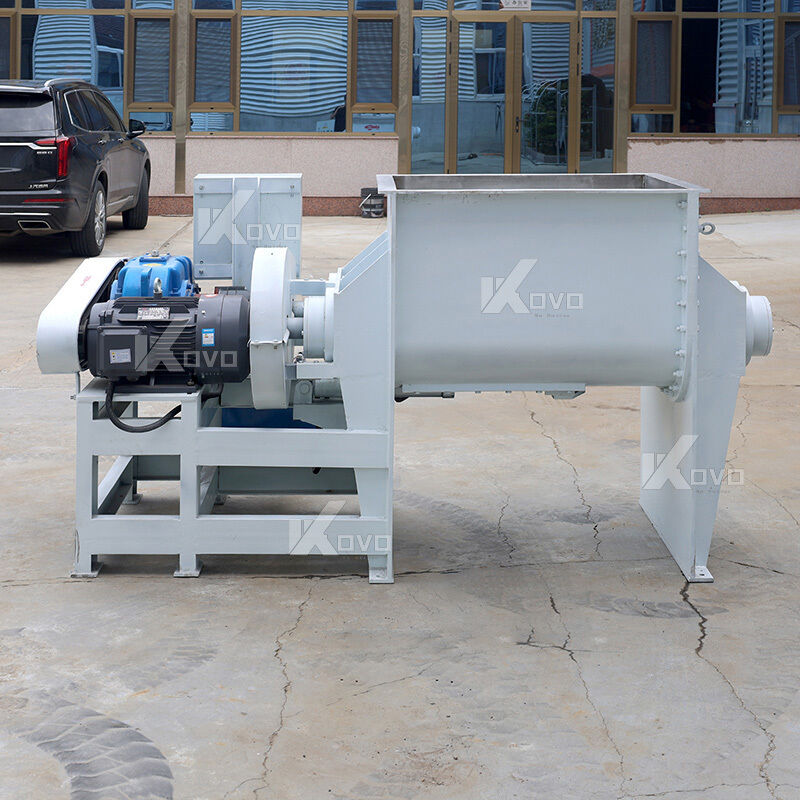

 CE Industrial Stainless Steel Soap Noodles Mixing Machine Sigma Double Z Arm Mixer
This industrial soap-making mixer is specifically designed for mixing various soap granules with additives in different forms (liquid or powder). The equipment is easy to operate, robustly constructed, and ensures thorough mixing, guaranteeing the production of high-quality soap.

Key Features:

  • Industrial-grade “Sigma”-type agitator paddles: achieve uniform mixing of materials.

  • Differential-speed contra-rotating paddles: promote full integration of ingredients.

  • Quick-clean blade geometry: simplifies servicing and reduces cleaning downtime.

  • Air-operated discharge gate: permits smooth, unobstructed product emptying.

  • Premium gearbox and drive motor: deliver dependable, stable performance.

  • Stainless-steel product-contact components: resist corrosion and comply with sanitary requirements.


Application in Laundry Soap Production:
Complete Laundry Bar Soap Production Line:
Mixer Agitator → Conveyor → 3 Roller Mill Machine → Conveyor → Vacuum Plodder → Cutting Machine

Mixer Agitator Function:
According to the soap formula requirements, the mixer agitator thoroughly mixes the soap granules with other additives, while simultaneously breaking the soap granules into fine particles to achieve the best processing effect.

Technical Specifications:
Model M-180
Capacity 100 kg per batch
Power 5.5 kW
Speed 32 r/min
Dimensions 2240 × 810 × 1400 mm
Weight 670 kg
Motor Brand LOVO (Chinese made)
Material Options Carbon steel (standard) / Stainless steel 304 (for toilet soap production)

Operational Procedure:

The Sigma-blade mixer is designed for manufacturing a broad range of soap products, such as laundry soap, transparent soap, and specialty grades. It provides effective blending of base materials, fine soap pellets, and even incorporation of additives, auxiliaries, and fragrance.

The standard workflow is as follows:

  1. Load 100 kg of soap pellets into the mixer.

  2. Start the machine.

  3. Introduce the remaining additives in sequence, with fragrance added last.

  4. Blend for 5–10 minutes until a homogeneous mixture is achieved.

  5. Slowly open the discharge gate and let the material fall onto the conveyor belt.

  6. Adjust the discharge rate to suit grinding and conveying requirements.

This process ensures complete and consistent combination of soap pellets and additives. Color paste and other ingredients dissolve fully within the soap mass, thereby guaranteeing stable product quality.
